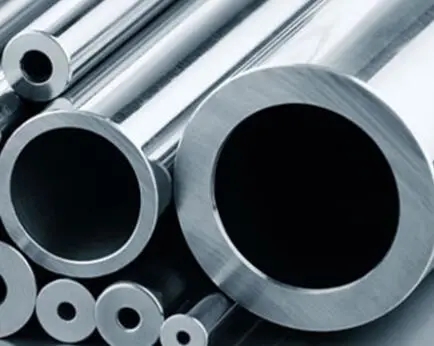

G3462-Stba13-Alloy-Steel-Pipe

Clicks:3610
Classification: Products and Projects Steel Pipes & Fittings
Brief description:Model NO.: Outer Diameter: 1/8"-36"(10.3mm-914.4mm) Special Use: High-strength Steel Plate, Wear Resistant Steel, Silicon Steel, Cold Heading Steel, Free Cutting Steel, Mold Steel Application: Thermoelectric Chemical Inspection: SGS BV Trademark: CHEMMAH Transport Package: Bulk Specification: Outer Diameter: 1/8"-36"(10.3mm-914.4mm) Origin: China HS Code: 73045990

Description:

Steel Grade:
ASTM A335 P1 P2 P12 P11 P22 P5 P9 P91 P92
P195, P235, P265, P195GH, P235GH, P265GH, 13CrMo4-5, 10CrMo9-10 A333Gr6

Size:
Outer Diameter: 1/8"-36" (10.3mm-914.4mm)
Wall Thickness: 1.2mm-80mm
Length: Random Length, SRL, DRL (4-14M)

End: pland ends beveled ends

Surface: Bare, Black, Lightly oiled, Hot dip galvanized, Varnish coating/Anti rust oil, Protective Coatings, 3PE

Packing: Nude, Plastic/steel plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

Standard	Steel Grade	Chemical Components							Mechanical Property
Standard	Steel Grade	C	Mn	Si	Cr	Mo	P	S	Tensile Strength (Mpa)	Yield Strength(Mpa)
ASTM A333	Gr6	≤0.30	0.29~1.06	≥0.10			≤0.025	≤0.025	≥415	≥240
ASTM A335	P1	0.10-0.20	0.30-0.80	0.10-0.50		0.44~0.65	≤0.025	≤0.025	≥380	≥205
	P5	≤0.15	0.30~0.60	≤0.50	4.00~6.00	0.45~0.65	≤0.025	≤0.025	≥415	≥205
	P9	≤0.15	0.30~0.60	0.25~1.00	8.00~10.00	0.90~1.10	≤0.025	≤0.025	≥415	≥205
	P11	0.05~0.15	0.30~0.60	0.50~1.00	1.00~1.50	0.44~0.65	≤0.025	≤0.025	≥415	≥205
	P12	0.05~0.15	0.30~0.61	≤0.50	0.80~1.25	0.44~0.65	≤0.025	≤0.025	≥415	≥220
	P22	0.05~0.15	0.30~0.60	≤0.50	1.90~2.60	0.87~1.13	≤0.025	≤0.025	≥415	≥205
