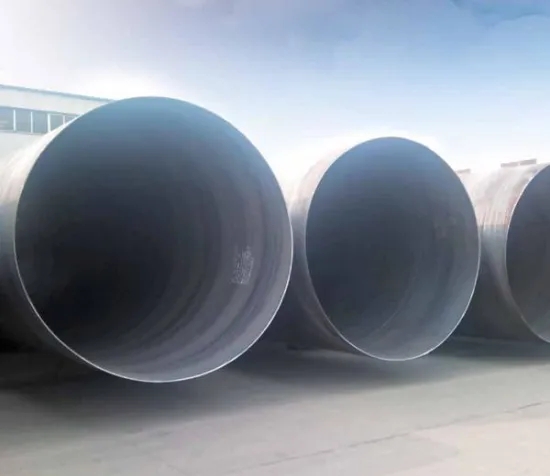

API-5L-Gr-B-Spiral-Submerged-Arc-Welded-Steel-Pipes
  • Clicks:3682
  • Classification: Products and Projects Steel Pipes & Fittings
  • Brief description:odel NO.: Outer Diameter: 1/8"-36"(10.3mm-914.4mm) Cross-Section Shape: Round Connection Type: Welding Third Part Inspection: SGS BV Trademark: CHEMMAH Transport Package: Black Paint, Bevel End, End Caps Specification: Outer Diameter: 1/8"-36"(10.3mm-914.4mm) Origin: China HS Code: 7304193000
 [←]  SSAW-Anti-Corrosion-Steel-Pipe
 [→]  En10219-S235jr-SSAW-Tubes
  • Manufacturing Technique:
    Cold Drawn Steel Pipe
    Hot Rolled Steel Pipe
    Hot Expanded Steel Pipe

    Steel Grade:
    A53 Gr. A, Gr B, A106 GR.A GR.B A333 GR1 GR3 GR6 A335 P1 P2 P5 P11 P12 P22 P9 A213 T2 T5 T11 T12 T22 T9 A210-C
    Size:
    Outer Diameter: 1/8"-36" (10.3mm-914.4mm)
    Wall Thickness: 1.2mm-80mm
    Length: Random Length, SRL, DRL(4-14M)
    End: pland ends beveled ends

    Surface: Bare, Black, Lightly oiled, Hot dip galvanized, Varnish coating/Anti rust oil, Protective Coatings, 3PE

    Packing: Nude, Plastic/steel plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

    ASTM A53 /A106 Chemical Components and Mechanical Property
    Standard  Steel Grade Chemical Components Mechanical Property
    C  Mn P S Cu Ni Cr Mo V Tensile Strength (Mpa) Yield Strength(Mpa) Elongation (Mpa)
    ASTM A53 A ≤0.25 ≤0.95 ≤0.05 ≤0.045 ≤0.40 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥330 ≥205 ≥29.5
    B ≤0.30 ≤1.20 ≤0.05 ≤0.045 ≤0.40 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥415 ≥240 ≥29.5
    Standard  Steel Grade Chemical Components Mechanical Property
    C  Si Mn P S Cu ,Ni Cr Mo V Tensile Strength (Mpa) Yield Strength(Mpa) Elongation (Mpa)
    ASTM A106 B ≤0.30 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥415 ≥240 ≥30
    C ≤0.35 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥485 ≥275 ≥30
