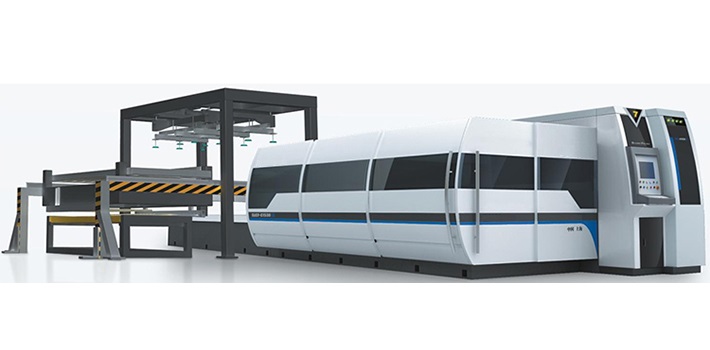

7-line Cantilever Fiber Laser Cutting Machine
  • Clicks:3961
  • Classification: Products and Projects Laser Machinery
  • Brief description:Cantilever type open structure; two-way feeding and unloading; easy to operate; Single motor drive system avoids possible tolerance occurred in dual motor drive; high accuracy, better consistency of working pieces and small abrasion between gear and rack.
 [←]  5-line Cantilever Fiber Laser Cutting Machine
 [→]  3-line Cantilever CO2 Laser Cutting Machine

  • Features:

    ■ Cantilever type open structure; two-way feeding and unloading; easy to operate.

    ■ Single motor drive system avoids possible tolerance occurred in dual motor drive; high accuracy, better consistency of working pieces and small abrasion between gear and rack.
    ■ Temperature distortion of working table will not affect the accuracy of mainframe due to the separate design of working table and mainframe.
    ■ Guide rails and racks, away from cutting area and in whole sealing protection, is difficult to be polluted by dust and have long service time.
    ■ Counter weight design of the cantilever makes center of gravity closeto drive point which leads to better stability of motion.
    ■ Preload technology in the cantilever will balance the tolerance caused by deflection.
    ■ Precision gear, rack, gear reducers and other transmission parts from Worldfamous brand Swiss GüDEL enable high travelling speed.
    ■ High strength aluminum alloy beam structure enables and marble machine tool enable it to have good acceleration feature.
    ■ Customized SPMC7000 CNC system and SPM700 intelligent programming software Pro will enrich more dedicated function of the laser; and remote diagnosis is also available.
    ■ Equipped with automatic edge-tracing function and beam compensation function.
    ■ Equipped with automatic edge-tracing function.
    ■ Equipped with Precitec Cutting head.
    ■ Full-automatic feeding system and high rack storage are available.


    Specifications:

    Model KM-CL1530Ⅶ/F KM-CL1560Ⅶ/F
    Machining range (mm×mm) 4000×1500 4000×2000
    X-axis stroke (mm) 4000 6000
    Y-axis stroke (mm) 1500 2000
    Z-axis stroke (mm) 100 100
    X-Y running speed (m/min) 280 280
    X-Y positioning accuracy (mm/m) ±0.03 ±0.03
    Repeated positioning accuracy (mm) ±0.02 ±0.02
    Laser device (W) 2500～6000 2500～6000
