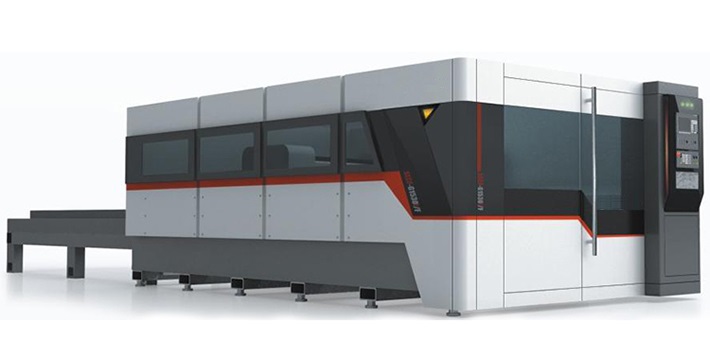

1-line Gantry Fiber Laser Cutting Machine

Clicks:4124
Classification: Products and Projects Laser Machinery
Brief description:Floor-type gantry structure and high strength aluminum. Precision gear, rack, gear reducers and other transmission parts from internationally well-known brand enable high travelling speed.

Features:

■ Floor-type gantry structure and high strength aluminum.

■ Precision gear, rack, gear reducers and other transmission parts from internationally well-known brand enable high travelling speed.

■ Customized SPMC1200 CNC system and SPM400 software will enrich more dedicated function of the laser; and remote diagnosis is also available.

■ Equipped with automatic edge-tracing function.

■ Equipped with single Auto feed-in working table.

Specifications:

Model	KM-GL1530Ⅰ/F
Machining range (mm×mm)	3000×1500
X-axis stroke (mm)	3000
Y-axis stroke (mm)	1500
Z-axis stroke (mm)	100
X-Y running speed (m/min)	140
X-Y positioning accuracy (mm/m)	±0.03
Repeated positioning accuracy (mm)	±0.02
Laser device (W)	1000～2000
