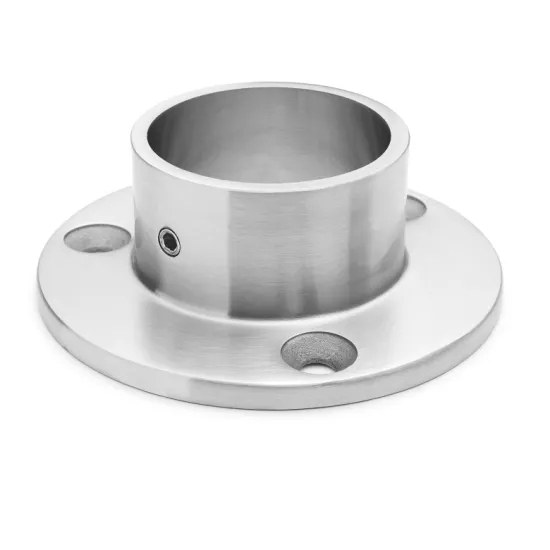

F304-304L-Stainless-Steel-Forged-Flanges
  • Clicks:3698
  • Classification: Products and Projects Steel Pipes & Fittings
  • Brief description:Model NO.: 1/2"-48" Manufacturing Way: Forging Inspection: SGS BV Trademark: CHEMMAH Transport Package: Wooden Box or Plate Specification: 1/2"-48" Origin: China HS Code: 73079100
 [←]  ASTM-A182-F91-Alloy-Steel-Flanges
 [→]  ASTM-A53-Grb-Galvanized-Steel-Pipes
  • Welding Neck Flange, Slip On Flange, Blind Flange, Plate Flange, Threaded Flange

    Forged Flange
    Standard:
    ANSI B16.5, ANSI B16.47 SERIES A & B, DIN2573, 2572, 2631, 2576, 2632, 2633, 2543, 2634, 2545
    Material:
    Carbon Steel: ASTM A 105/A105N
    Stainless Steel: ASTM A182 F304/304L, F316/316L, F321
    Alloy Steel: ASTM A182 F1, F5, F9, F11, F12, F22, F91
    Size & Rating:
    1/2"-48" ANSI CL150-CL2500, DIN 6BAR-40BAR, JIS 5K-30K
    Face Type:
    Flat Face, Raised Face, Ring Joint Face, Lap Joint Face, Male Face, Female Face, Tongue & Groove Face
    Type:
    Welding Neck Flange, Slip On Flange, Blind Flange, Socket Welding Flange, Threaded Flange, Reducing Flange, Spectacle Blind Flange, Orifice Flange
    ASTM A53 /A106 Chemical Components and Mechanical Property
    Standard  Steel Grade Chemical Components Mechanical Property
    C  Mn P S Cu Ni Cr Mo V Tensile Strength (Mpa) Yield Strength(Mpa) Elongation (Mpa)
    ASTM A53 A ≤0.25 ≤0.95 ≤0.05 ≤0.045 ≤0.40 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥330 ≥205 ≥29.5
    B ≤0.30 ≤1.20 ≤0.05 ≤0.045 ≤0.40 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥415 ≥240 ≥29.5
    Standard  Steel Grade Chemical Components Mechanical Property
    C  Si Mn P S Cu ,Ni Cr Mo V Tensile Strength (Mpa) Yield Strength(Mpa) Elongation (Mpa)
    ASTM A106 B ≤0.30 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥415 ≥240 ≥30
    C ≤0.35 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥485 ≥275 ≥30
