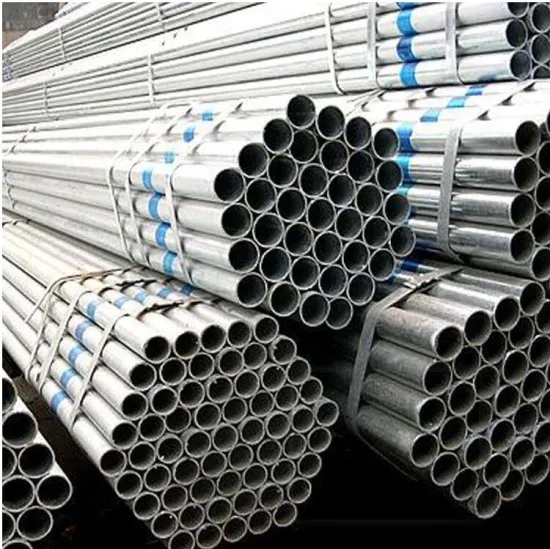

ASTM-A53-Grb-Galvanized-Steel-Pipes
  • Clicks:3599
  • Classification: Products and Projects Steel Pipes & Fittings
  • Brief description:Model NO.: Outer Diameter: 1/8"-36"(10.3mm-914.4mm) Cross-Section Shape: Round Connection Type: Welding Inspection: SGS BV Trademark: CHEMMAH Transport Package: Bundle Specification: OD: 10.3mm-914.4mm Origin: China HS Code：7304319000
 [←]  F304-304L-Stainless-Steel-Forged-Flanges
 [→]  JIS-Galvanized-Steel-Pipes
  • Manufacturing Technique:
    Galvanized Steel Seamless Pipe
    Galvanized Steel Welded Pipe
    Hot-Dip Galvanized Steel Pipe

    Steel Grade:
    A53 Gr. A, Gr B, A106 GR.A GR.B A333 GR1 GR3
    Size:
    Outer Diameter: 1/8"-36"(10.3mm-914.4mm)
    Wall Thickness: 1.2mm-80mm
    Length: Random Length, SRL, DRL(4-14M)
    End: pland ends beveled ends

    Surface: Bare, Black,Lightly oiled, Hot dip galvanized, Varnish coating/Anti rust oil, Protective Coatings, 3PE

    Packing: Nude, Plastic/steel plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps

    ASTM A53 /A106 Chemical Components and Mechanical Property
    Standard  Steel Grade Chemical Components Mechanical Property
    C  Mn P S Cu Ni Cr Mo V Tensile Strength (Mpa) Yield Strength(Mpa) Elongation (Mpa)
    ASTM A53 A ≤0.25 ≤0.95 ≤0.05 ≤0.045 ≤0.40 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥330 ≥205 ≥29.5
    B ≤0.30 ≤1.20 ≤0.05 ≤0.045 ≤0.40 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥415 ≥240 ≥29.5
    Standard  Steel Grade Chemical Components Mechanical Property
    C  Si Mn P S Cu ,Ni Cr Mo V Tensile Strength (Mpa) Yield Strength(Mpa) Elongation (Mpa)
    ASTM A106 B ≤0.30 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥415 ≥240 ≥30
    C ≤0.35 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 ≤0.40 ≤0.40 ≤0.15 ≤0.08 ≥485 ≥275 ≥30
