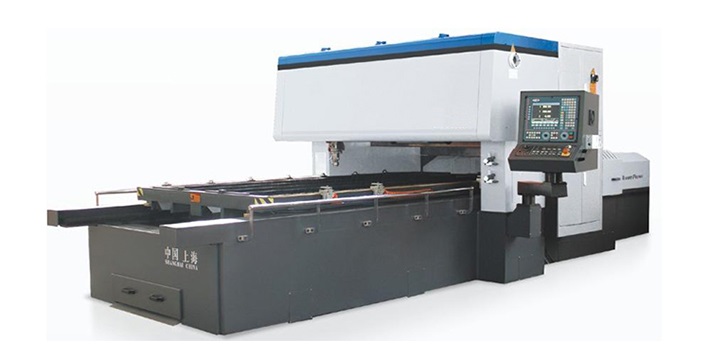

1-line Gantry CO2 Laser Cutting Machine

Clicks:3884
Classification: Products and Projects Laser Machinery
Brief description:Adopt fixed gantry beam optical path structure. Simple structure and easy maintenance procedures. Customized SPMC1200 numerical control system enables it to have rich laser special functions and WINDOWS operation interface, available with remote diagnosis; flexible and easy use.

[←] 3-line Gantry Fiber Laser Cutting Machine

[→] 3-line Gantry CO2 Laser Cutting Machine

Description:

Features:

■ Adopt fixed gantry beam optical path structure. Simple structure and easy maintenance procedures.

■ Customized SPMC1200 numerical control system enables it to have rich laser special functions and WINDOWS operation interface, available with remote diagnosis; flexible and easy use.

■ Optical beam compensation device is optional.

Specifications:

Model	KM-FL1530	KM-FL1530
Machining range (mm×mm)	3000×1500	3000×2000
X-axis stroke (mm)	3000	4000
Y-axis stroke (mm)	1500	2000
Z-axis stroke (mm)	100	100
X-Y running speed (m/min)	34	34
X-Y positioning accuracy (mm/m)	±0.03	±0.03
Repeated positioning accuracy (mm)	±0.005	±0.005
Laser device (W)	1500～2400	1500～2400
