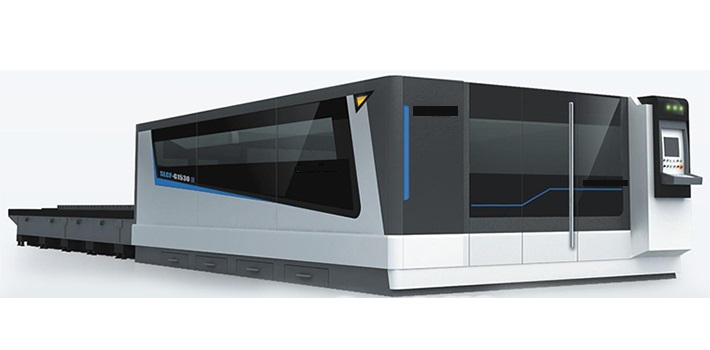

3-line Gantry CO2 Laser Cutting Machine

Clicks:3920
Classification: Products and Projects Laser Machinery
Brief description:Floor-type gantry structure and high strength aluminum alloy beam can generate better acceleration features. Precision gear, rack, gear reducers and other trans-mission parts from World famous brand Swiss GüDEL enable high travelling speed.

[←] 1-line Gantry CO2 Laser Cutting Machine

[→] High-speed Laser for Cutting Plate or Pipe Machine

Description:

Features:

■ Floor-type gantry structure and high strength aluminum alloy beam can generate better acceleration features.

■ Precision gear, rack, gear reducers and other trans-mission parts from World famous brand Swiss GüDEL enable high travelling speed.

■ Customized SPMC3000 CNC system and SPM500 intelligent programming software will enrich more dedicated function of the laser; and remote diagnosis is also available.

■ Equipped with automatic edge-tracing function and beam compensation function

■ Equipped with light curtain for safety protection.

Specifications:

Model	KM-GL1530Ⅲ	KM-GL2240Ⅲ	KM-GL2260Ⅲ
Machining range (mm×mm)	3000×1500	4000×2200	6000×2200
X-axis stroke (mm)	3000	4000	6000
Y-axis stroke (mm)	1500	2200	2200
Z-axis stroke (mm)	100	100	100
X-Y running speed (m/min)	169	169	169
X-Y positioning accuracy (mm/m)	±0.03	±0.03	±0.03
Repeated positioning accuracy (m/min)	±0.02	±0.02	±0.02
Laser device (W)	2500～6000	2500～6000	2500～6000
